Inverters Growatt 40000TL3-NS 4 units (160kW), Growatt Smart Energy Manager to control zero export and monitor the PV Plant.
ELF – Bangkok Factory
Inverters Growatt 40000TL3-NS 4 units (160kW), Growatt Smart Energy Manager to control zero export and monitor the PV Plant.

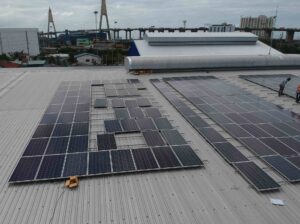

Solar Panels are Jinko Eagle 335Wp Poly, 592 modules were installed, totaling 198,320Wp. Lock Solar mounting was used for the metal sheet profile. For the electrical connection to the grid, we installed a main MCCB connected to the factory’s MDB Panel and then installed the CTs (current transformers) to this connection to allow for accurate measurement of current and to control zero export. From this MCCB, we connected the Solar AC Panel, which was a four-way AC Enclosure, one way for each Solar Inverter. This system is fully compliant with MEA and ERC regulations.
